How To Implement Microservices by Using AWS Containers
Updated
•3 min read
T
Cloud & SRE specializing in AWS and DevOps. I share my ongoing learning journey through practical tutorials and insights. Let's grow together.
Step 1. Create an ECR repository

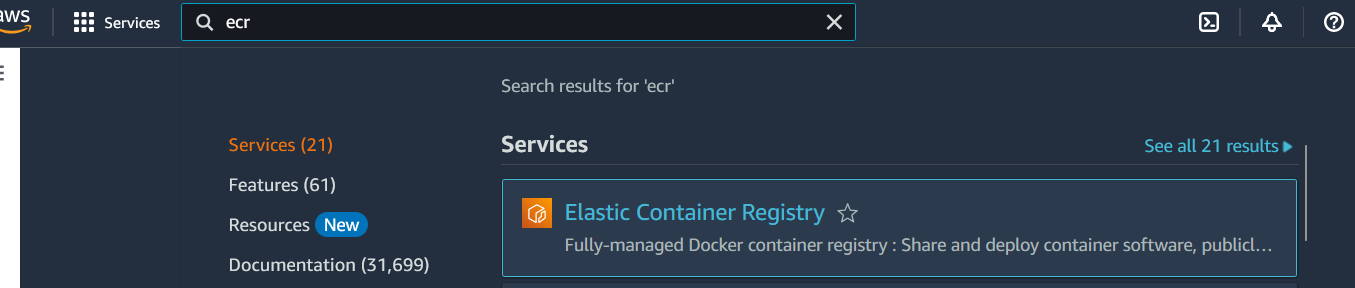

- In the AWS navigation bar, type
ECRinto the search box, and then selectElastic Container Registry service

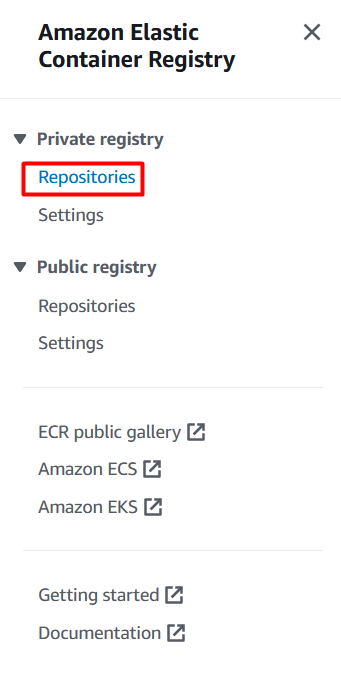

- Click
Repositories

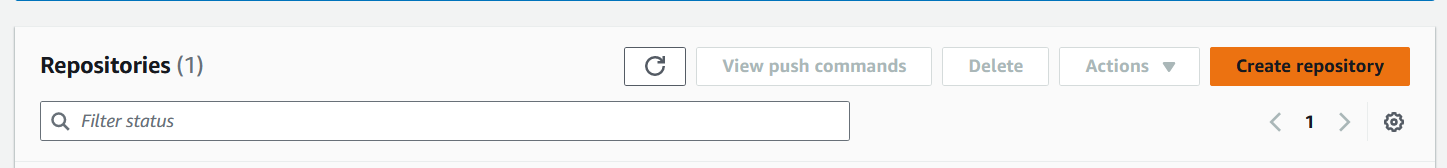

- Click
Create repository

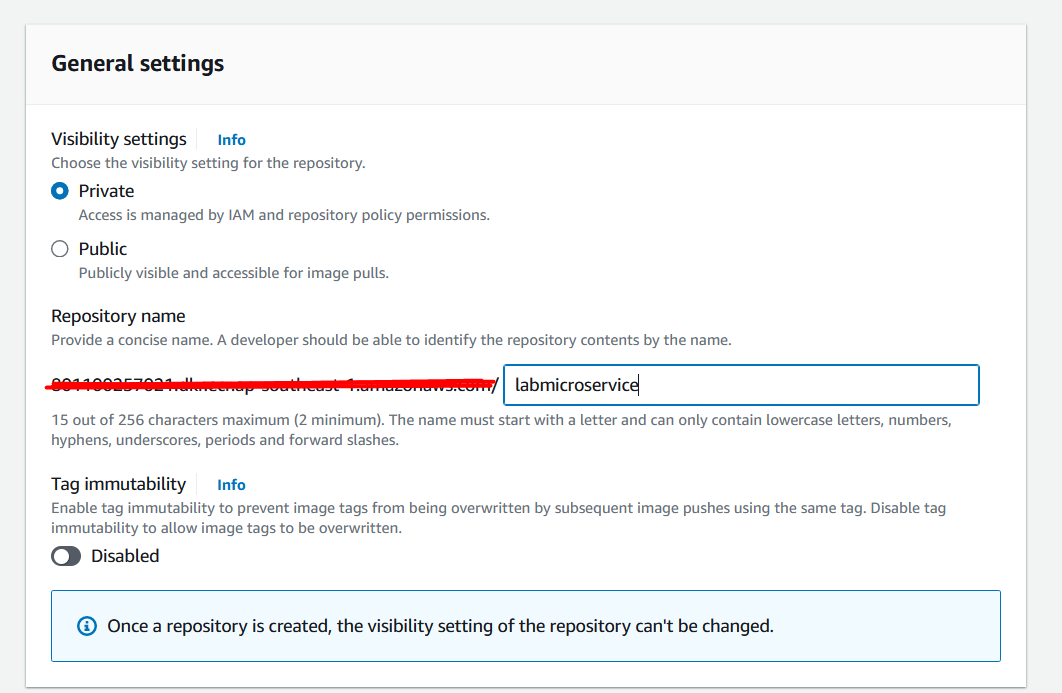

- Write Repository name

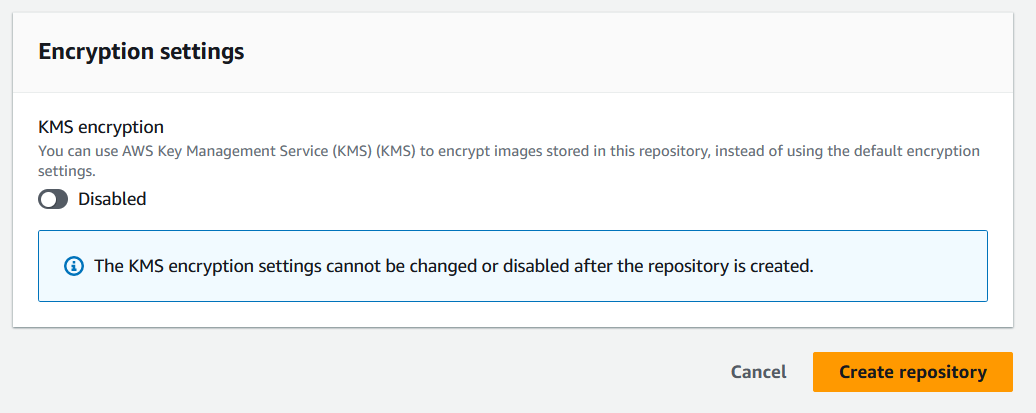

- Click
Create repository

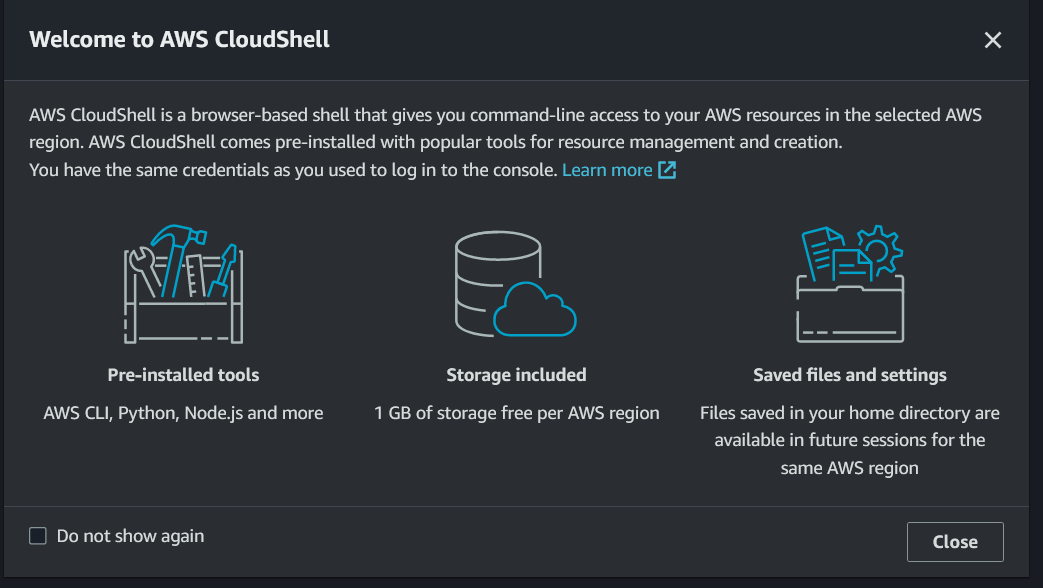

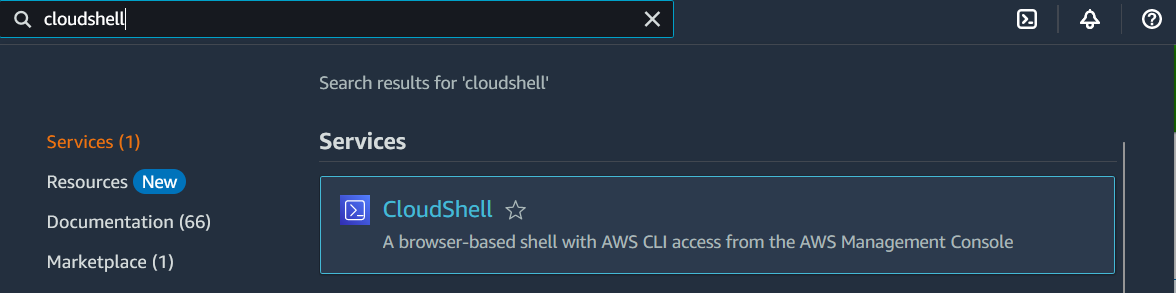

- In the AWS navigation bar, type
cloudshellinto the search box, and then click
- Click
Close
- Create new folder by typing the following command
mkdir ~/labmicroservice
- type the following command
cd ~/labmicroservice
- Create
Dockerfileby using VIM Editor
vim Dockerfile
- Copy and paste the following command in
Dockerfileand save
FROM public.ecr.aws/amazonlinux/amazonlinux:latest
# Install dependencies
RUN yum update -y && \
yum install -y httpd
# Install the cowsay binary
RUN dnf install --assumeyes cowsay
# Install apache and write a web page
RUN echo "<html><pre style=\"line-height:100%\">" > /var/www/html/index.html
RUN cowsay 'We have a LOT of milk in stock!' >> /var/www/html/index.html
RUN echo "</pre></html>" >> /var/www/html/index.html
# Configure apache
RUN echo 'mkdir -p /var/run/httpd' >> /root/run_apache.sh && \
echo 'mkdir -p /var/lock/httpd' >> /root/run_apache.sh && \
echo '/usr/sbin/httpd -D FOREGROUND' >> /root/run_apache.sh && \
chmod 755 /root/run_apache.sh
EXPOSE 80
CMD /root/run_apache.sh

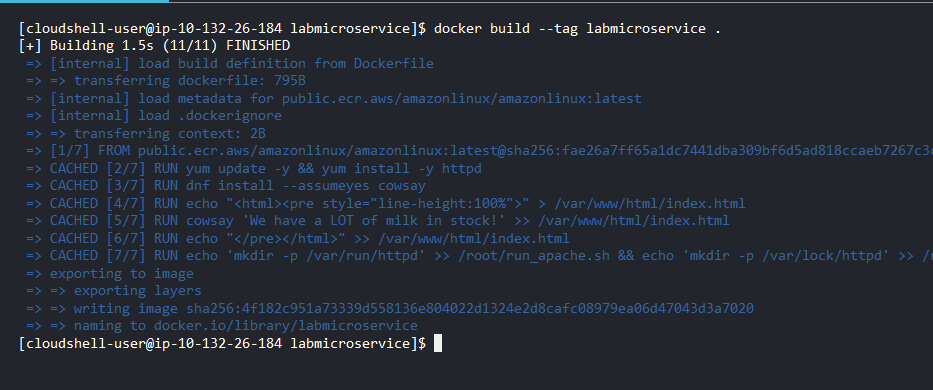

- Run the following command
docker build --tag labmicroservice .
Step 2. Deploy a Docker container to ECR

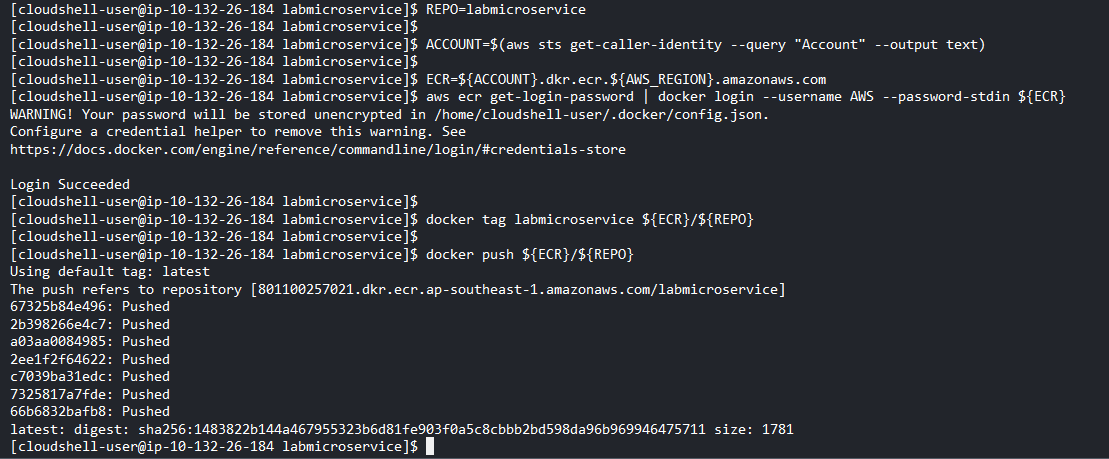

- Type the following command and press
Enter
REPO=labmicroservice
ACCOUNT=$(aws sts get-caller-identity --query "Account" --output text)
ECR=${ACCOUNT}.dkr.ecr.${AWS_REGION}.amazonaws.com
aws ecr get-login-password | docker login --username AWS --password-stdin ${ECR}
docker tag labmicroservice ${ECR}/${REPO}
docker push ${ECR}/${REPO}
- Type the following command
aws ecr list-images --repository-name labmicroservice --region ${AWS_REGION}
- Click
Repositories

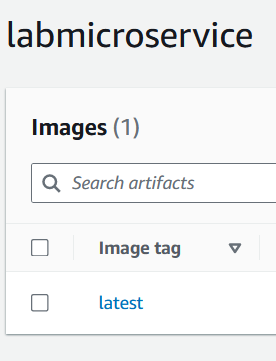

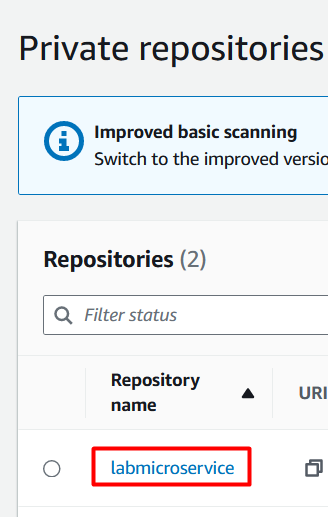

- Click
labmicroservice

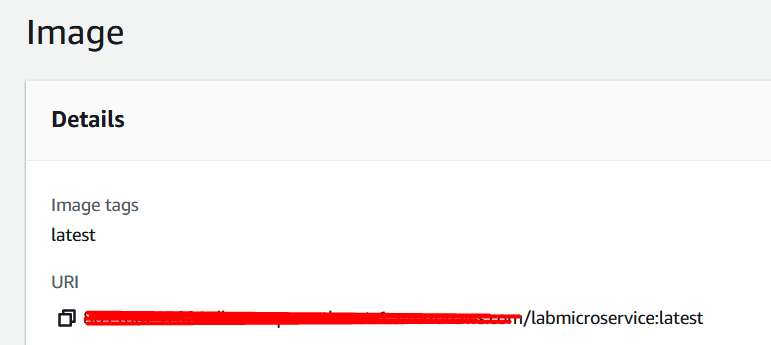

- Click
latest
- Copy this URL
Step 3. Create an ECS cluster using Amazon Fargate

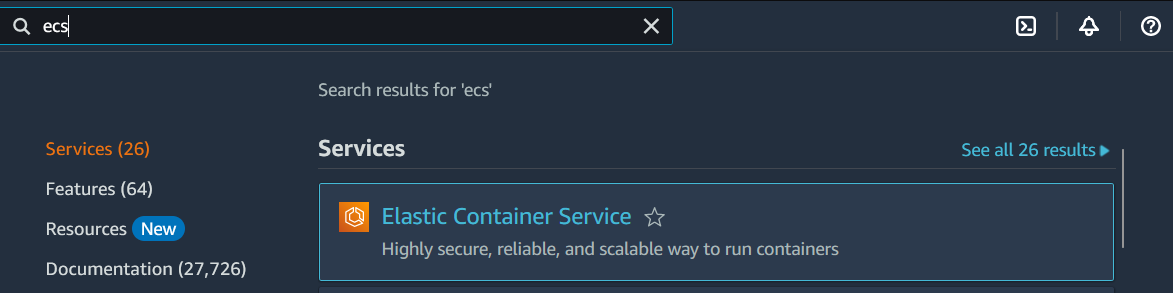

- Type
Elastic Container Servicein Services and click

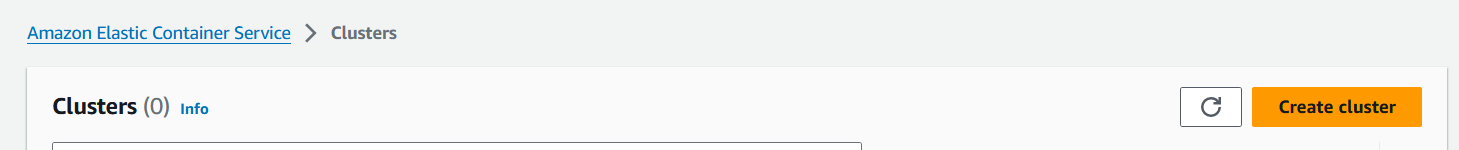

- Click
Create cluster

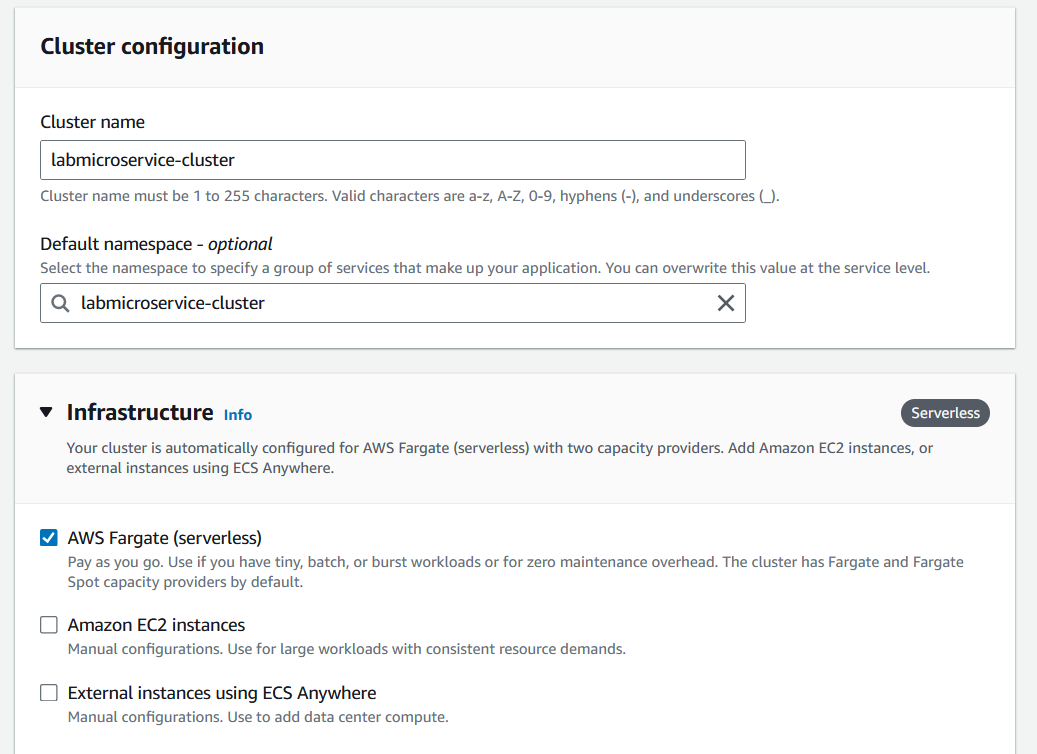

- Type Cluster name and Choose
AWS Fargate (serverless)then ClickCreate

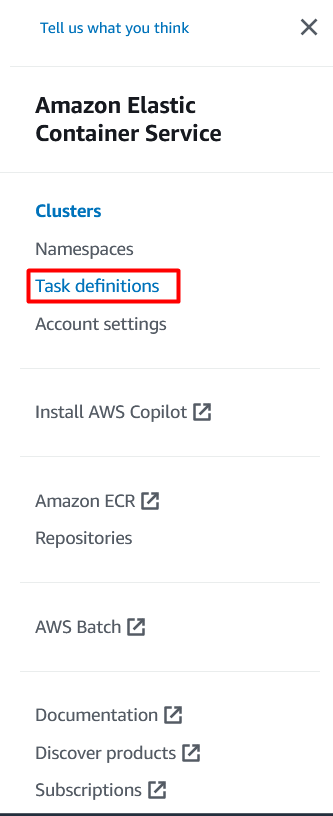

- Click
Task definitions

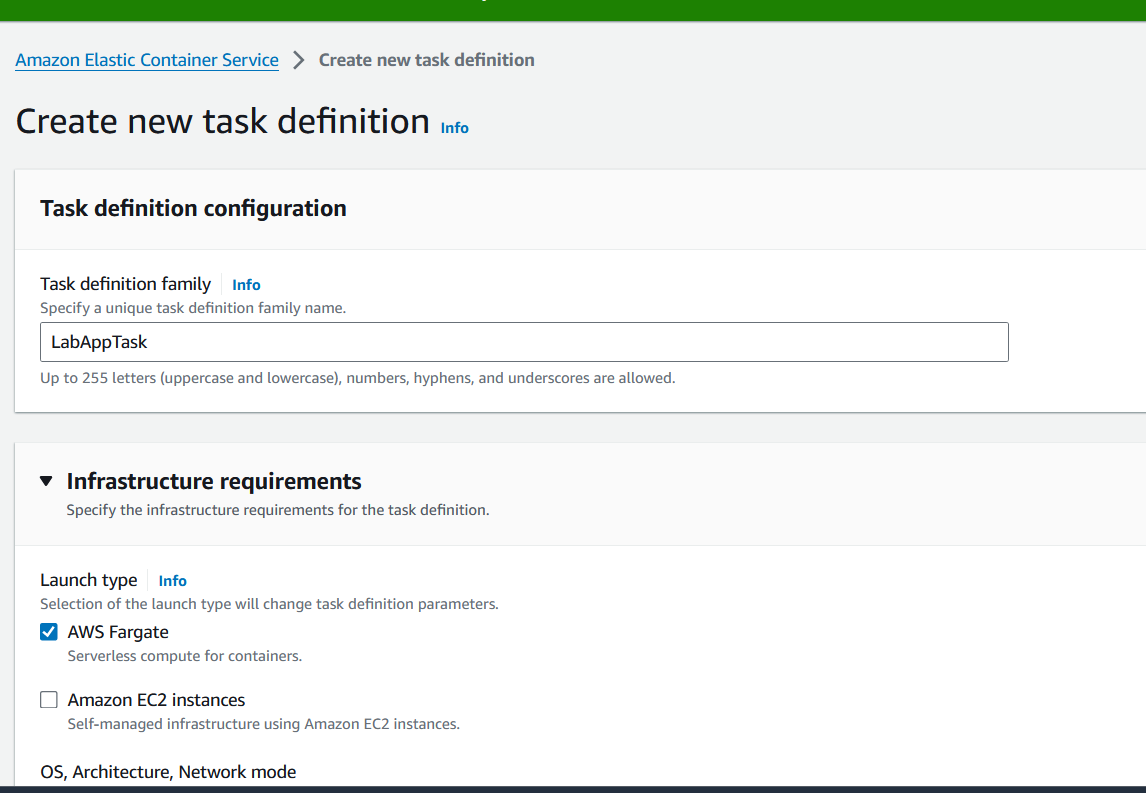

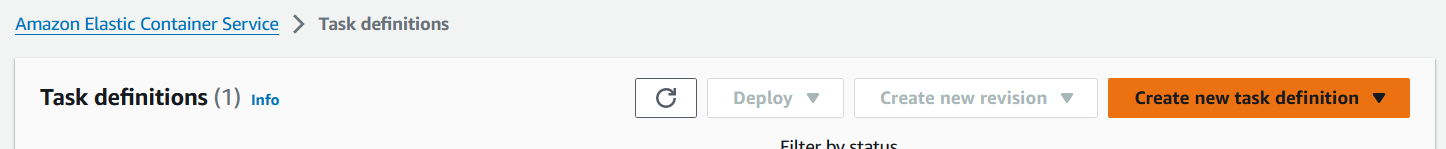

- Click
Create new task definitionand chooseCreate new task definition

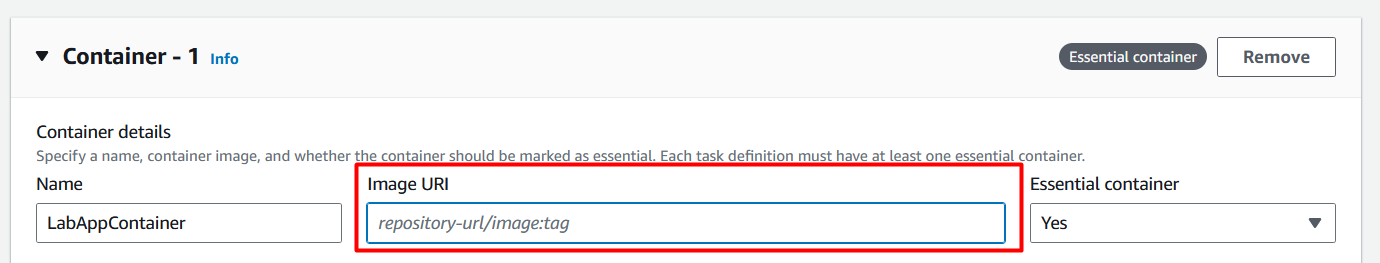

- Type name and paste ULR you copied earlier

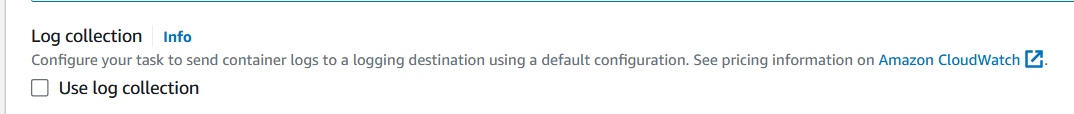

- Clear
Use log collection
- Click
Create

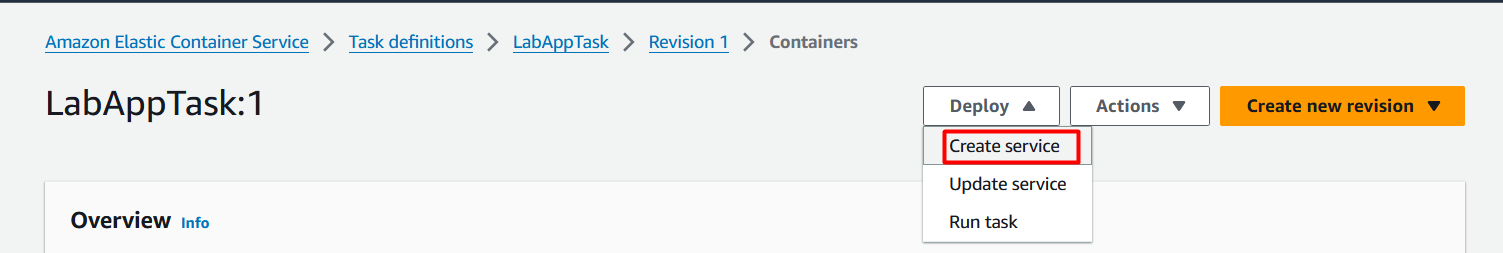

- Select
Create service

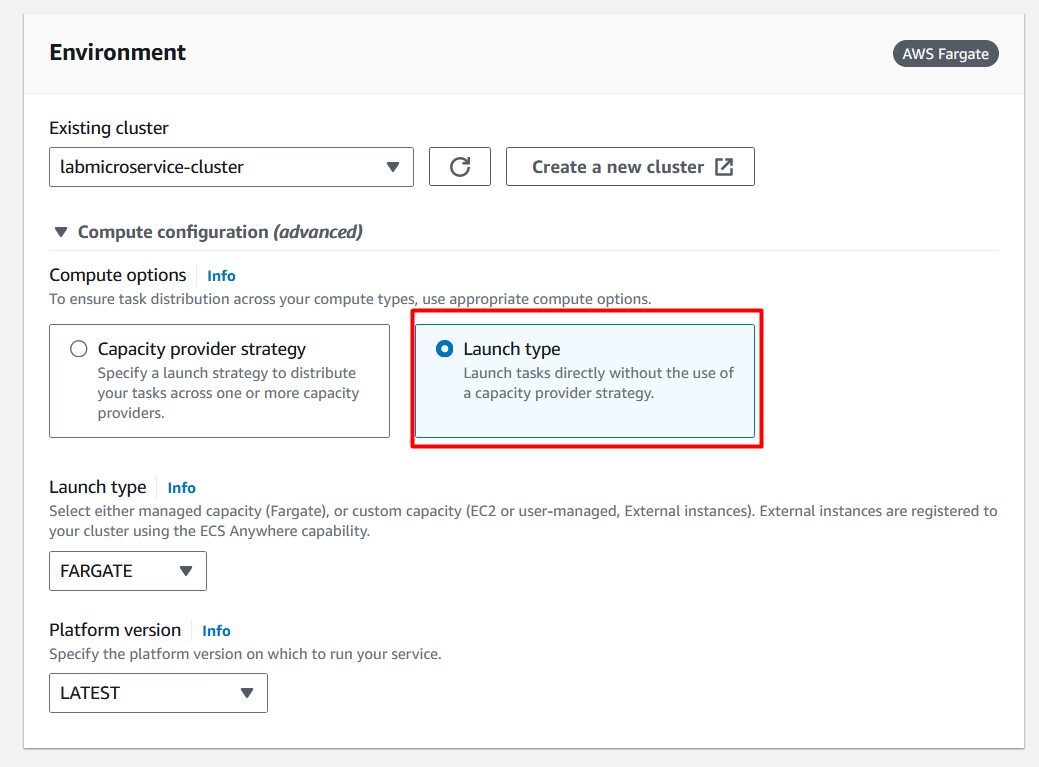

- Select
Launch type

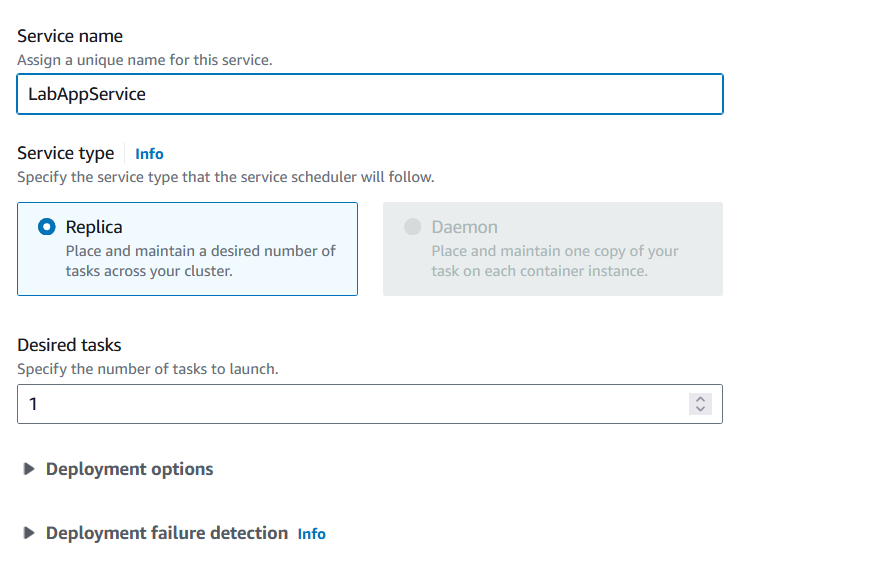

- Type
Service name
Select
VPCand ChooseAll subnetsandSecurity GroupClick
Create
Step 4. Test the container application

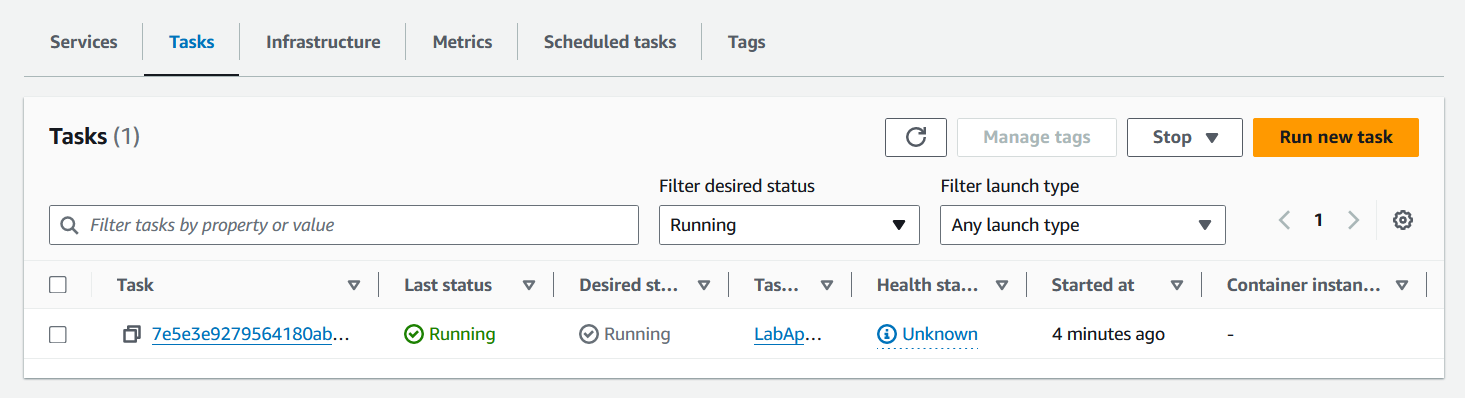

- Click
Taskand Click on task name

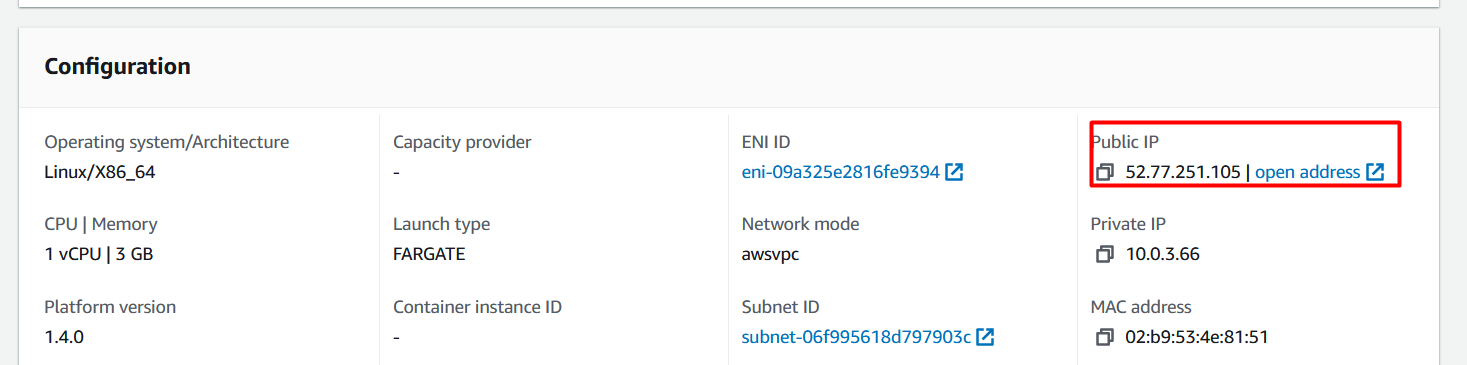

- Copy
Public ipand open in new browser
